• RVS AISI 316
• Metrische draad

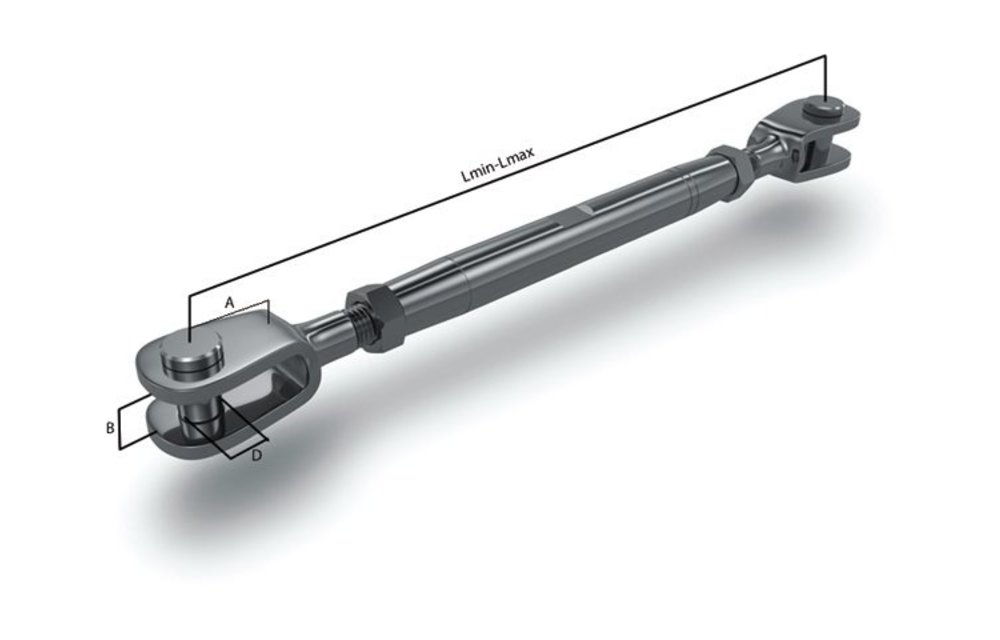

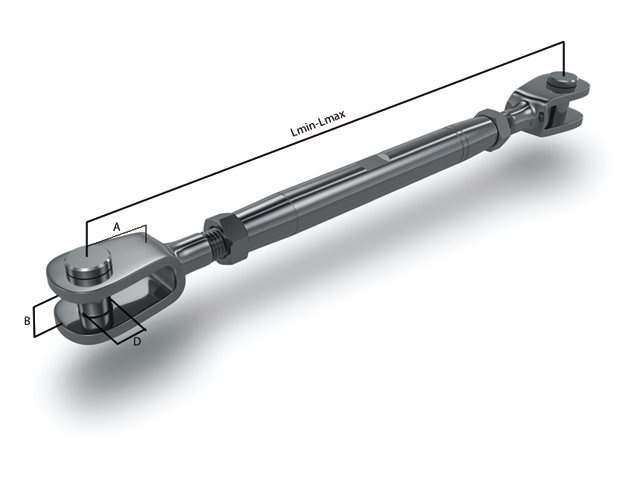

| Draad Ø mm | Schroefdraad | D mm | A mm | B mm | Lengte min - max mm | Gewicht kg | Breekkracht in daN | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 2,5 | M5 | 5,0 | 11,5 | 7,0 | 132 - 197 | 0,052 | 825 | |||
| 3,0 | M6 | 6,3 | 13,0 | 7,0 | 145 - 217 | 0,089 | 1300 | |||
| 4,0 | M8 | 8,0 | 17,0 | 8,0 | 173 - 249 | 0,168 | 2350 | |||
| 5,0 | M10 | 9,5 | 19,0 | 10,0 | 193 - 278 | 0,284 | 3550 | |||
| 6,0 | M12 | 12,7 | 25,0 | 14,5 | 250 - 359 | 0,561 | 5250 | |||
| 7,0 | M14 | 12,7 | 25,0 | 14,5 | 271 - 389 | 0,633 | 6000 | |||
| 8,0 | M16 | 12,7 | 32,5 | 17,0 | 312 - 444 | 0,943 | 8300 | |||
| 10,0 | M20 | 16,0 | 39,5 | 20,0 | 375 - 539 | 1,842 | 12800 |
